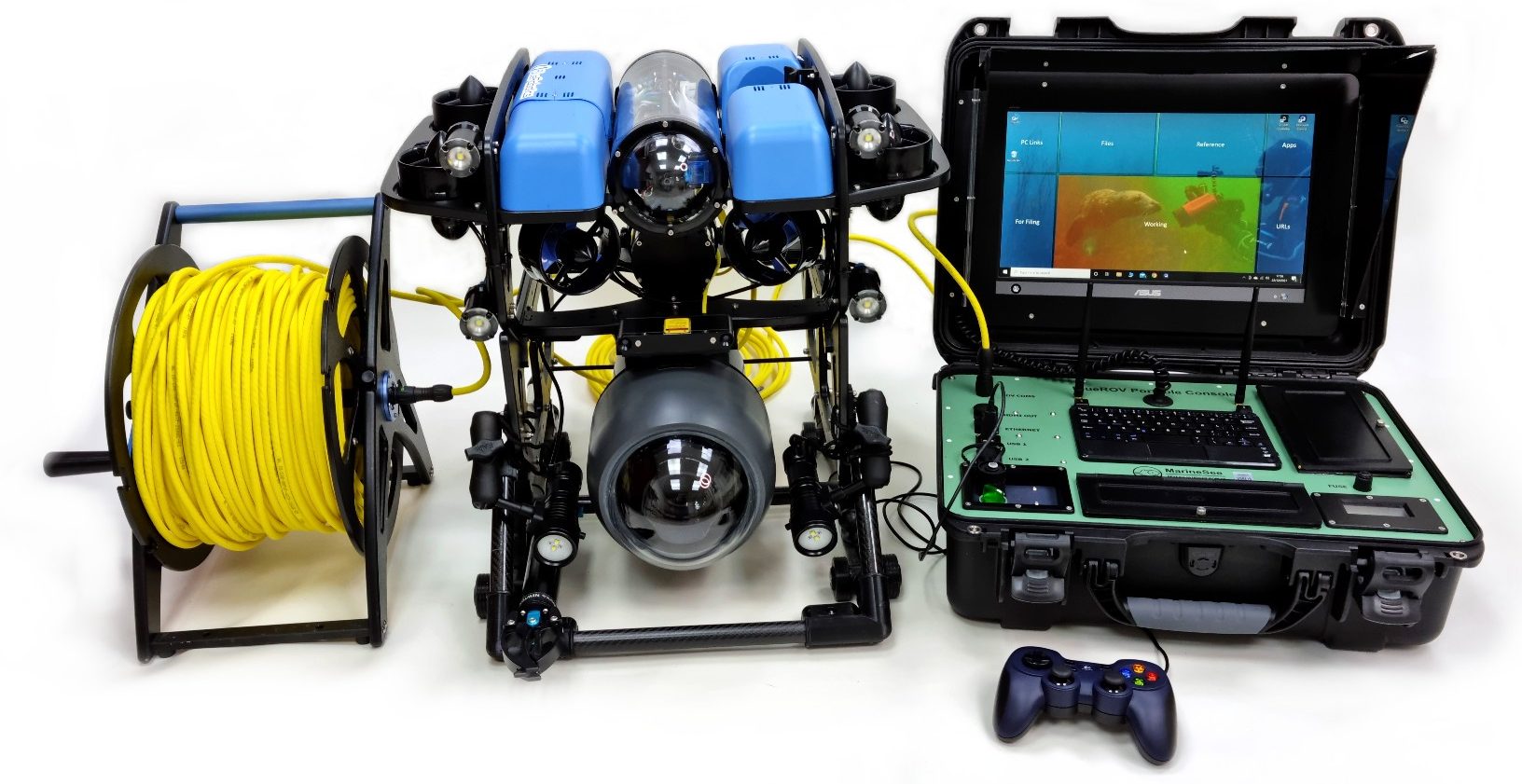

All in one topside solution for controlling the BlueROV2

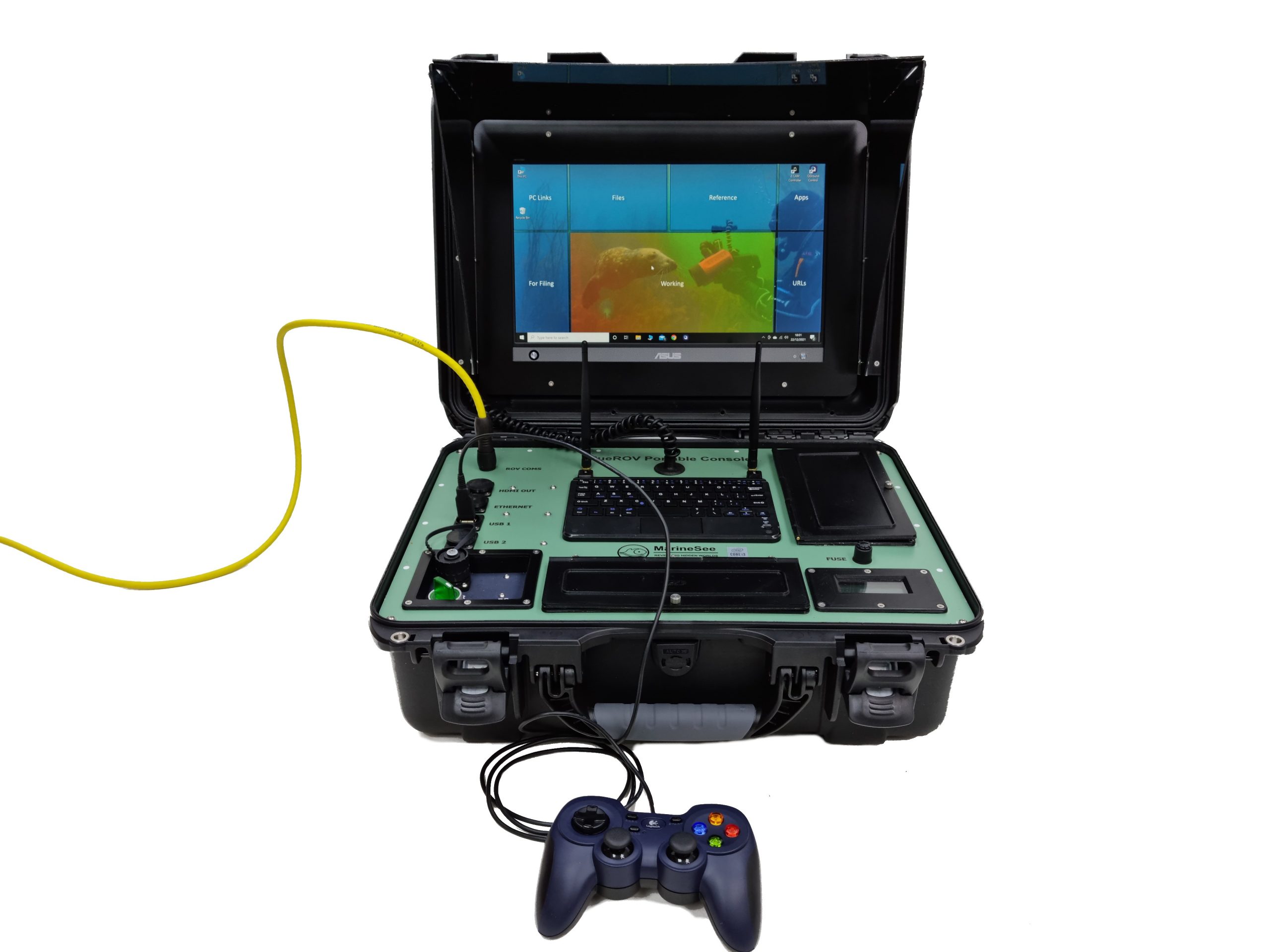

This bespoke equipment incorporates all the main components required to operate the BlueROV2 which include; Core i3 motherboard, battery and external power input, Fathom X PCB, dual Ethernet (for second video camera), Bluetooth keyboard, controller storage, 1920 x 1080 resolution screen with sun visor, Wi-Fi, IP67 case.

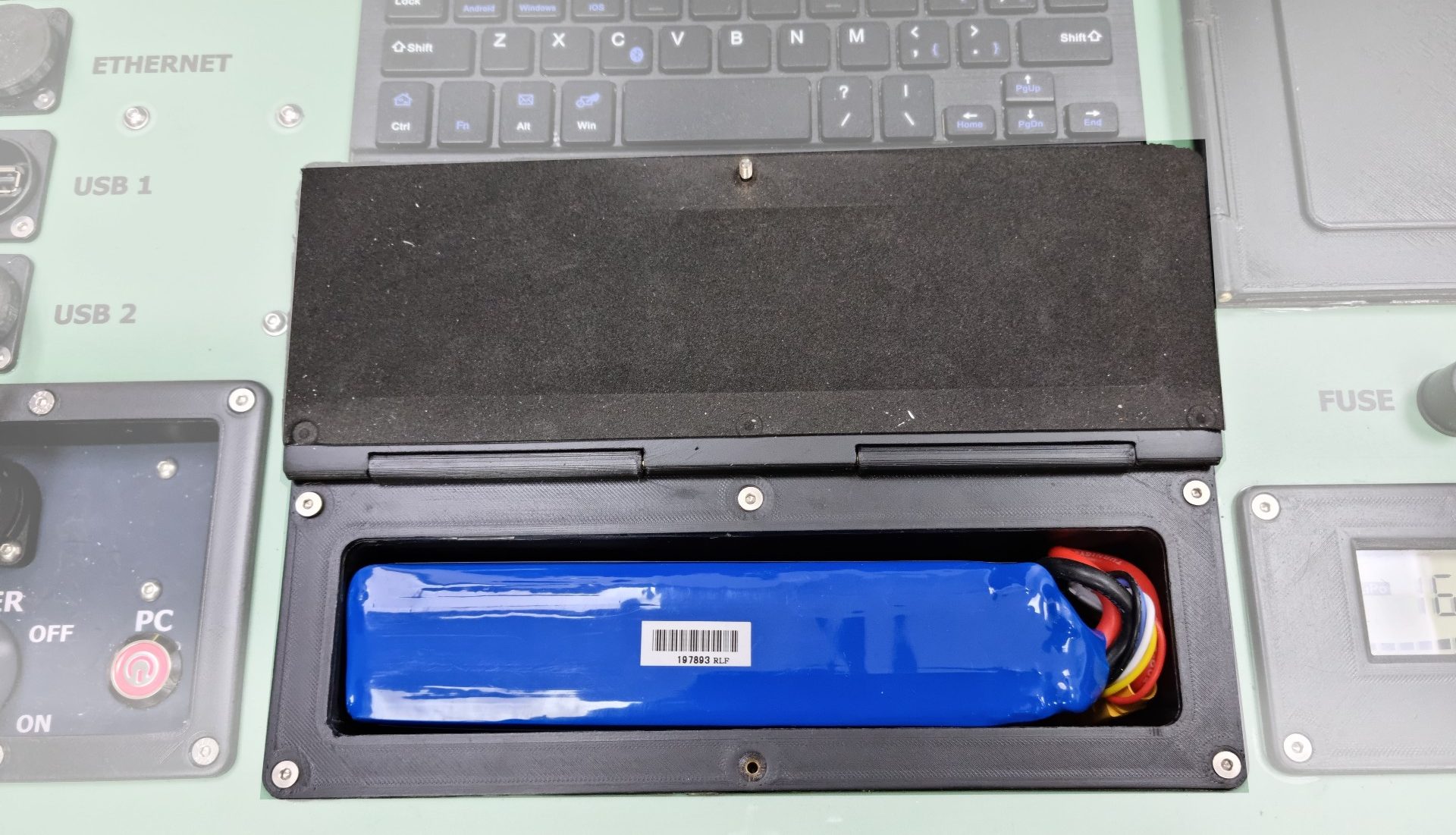

There is storage for a 10Ah Turnigy 14.8v Li-Po battery (can also be used to power the ROV)
When the external supply is interrupted, the battery automatically takes over without affecting the computer.

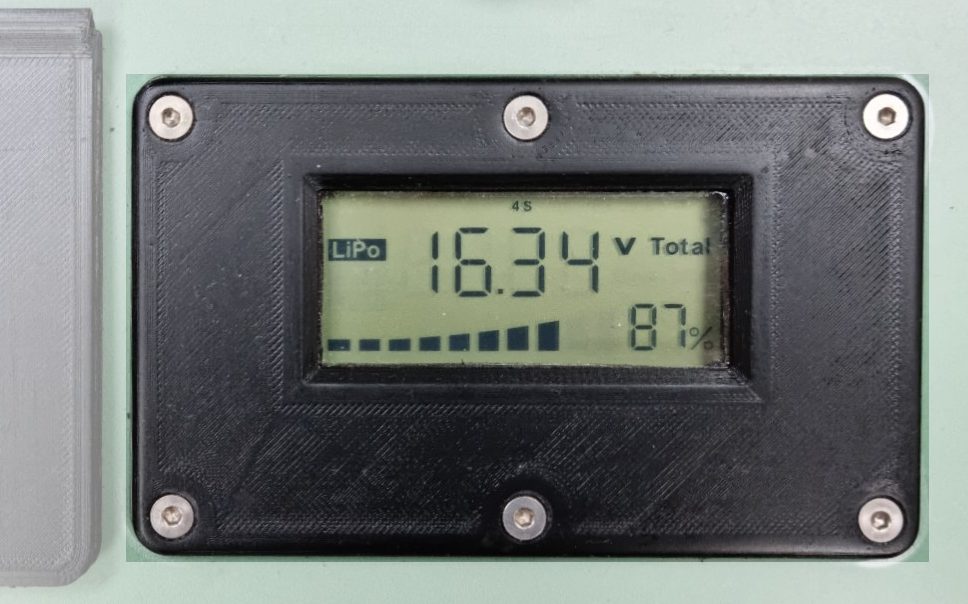

A digital battery capacity tester is included on the front panel.

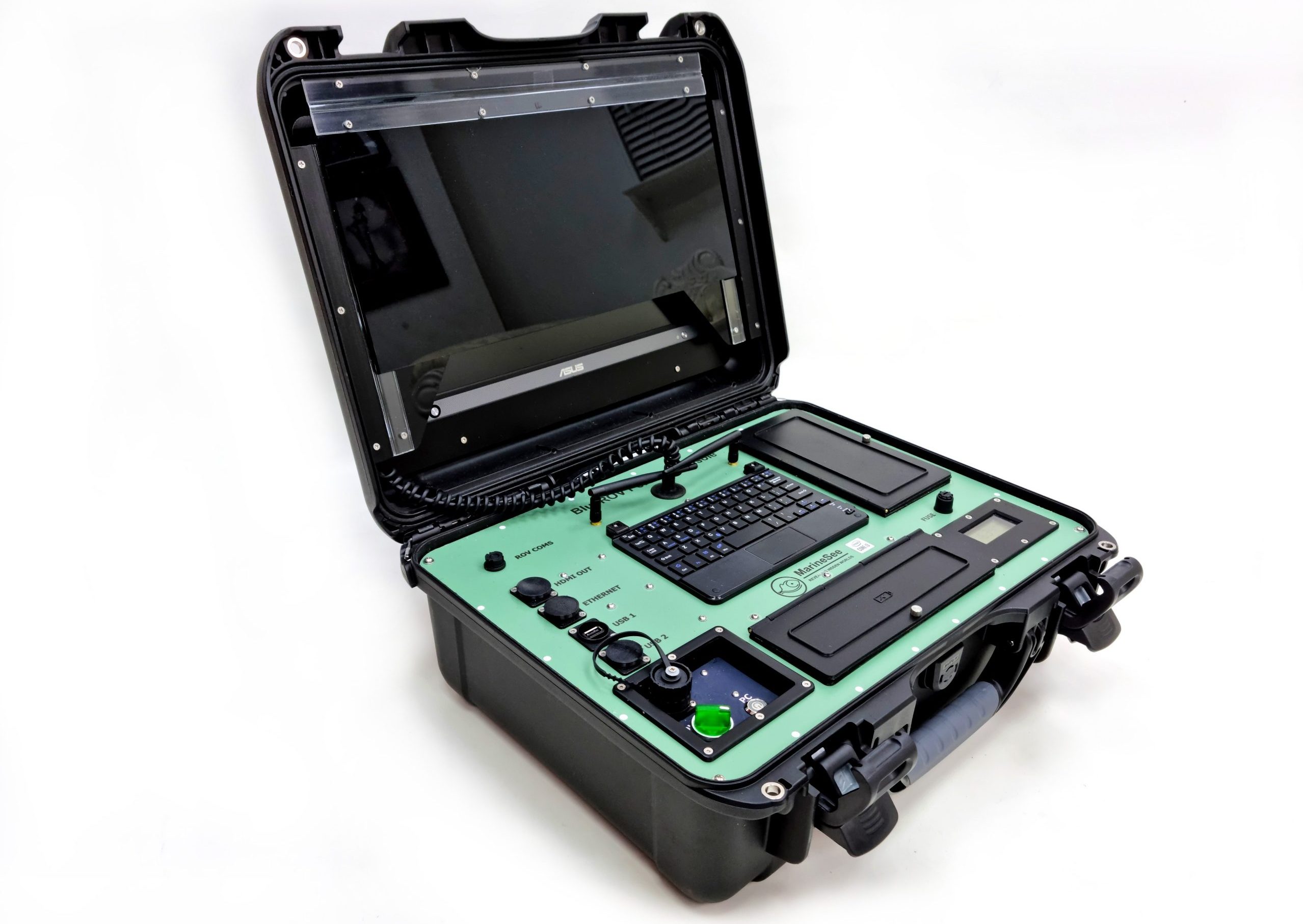

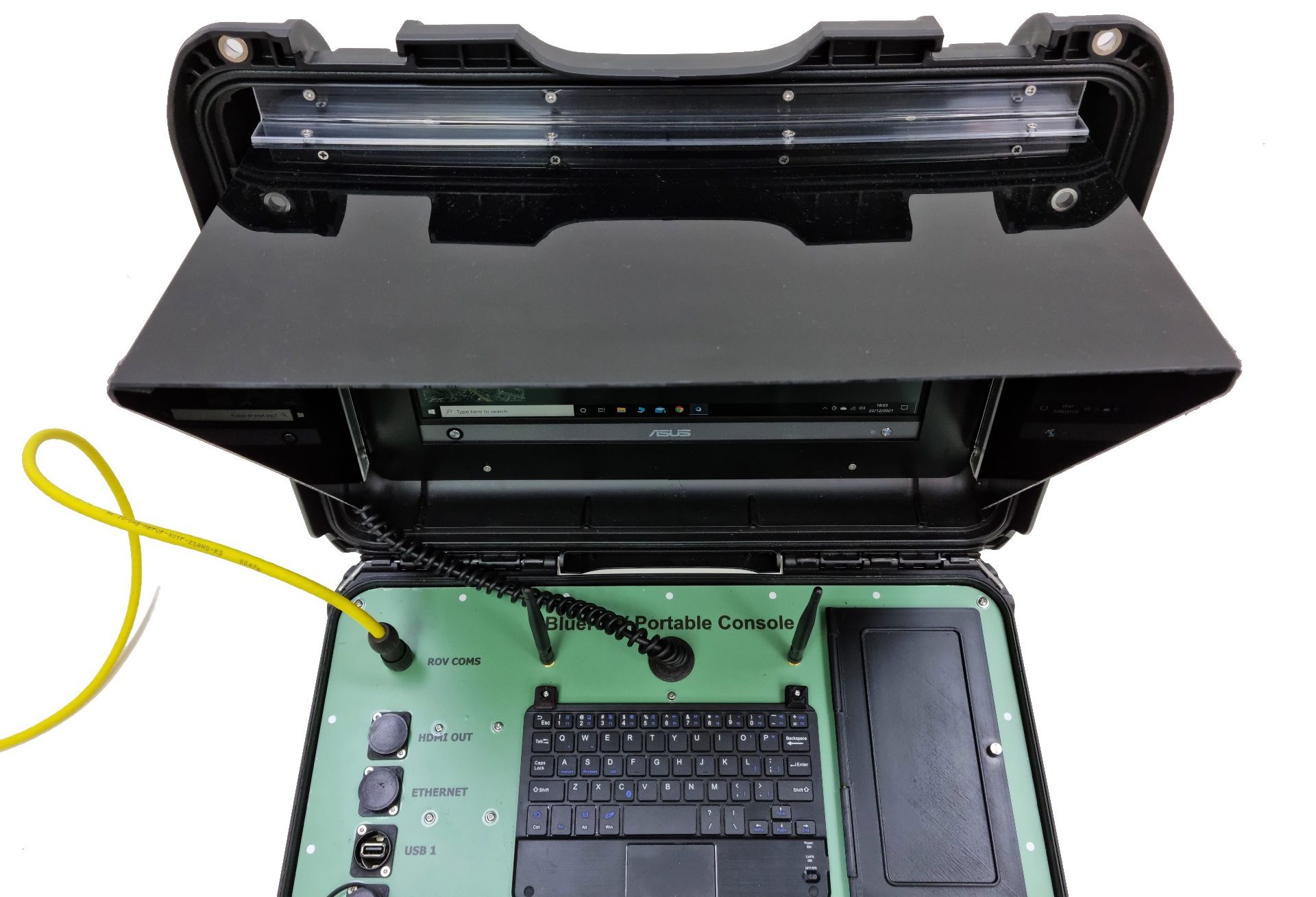

The screen has an acrylic sun visor which folds away neatly when the case lid is closed.

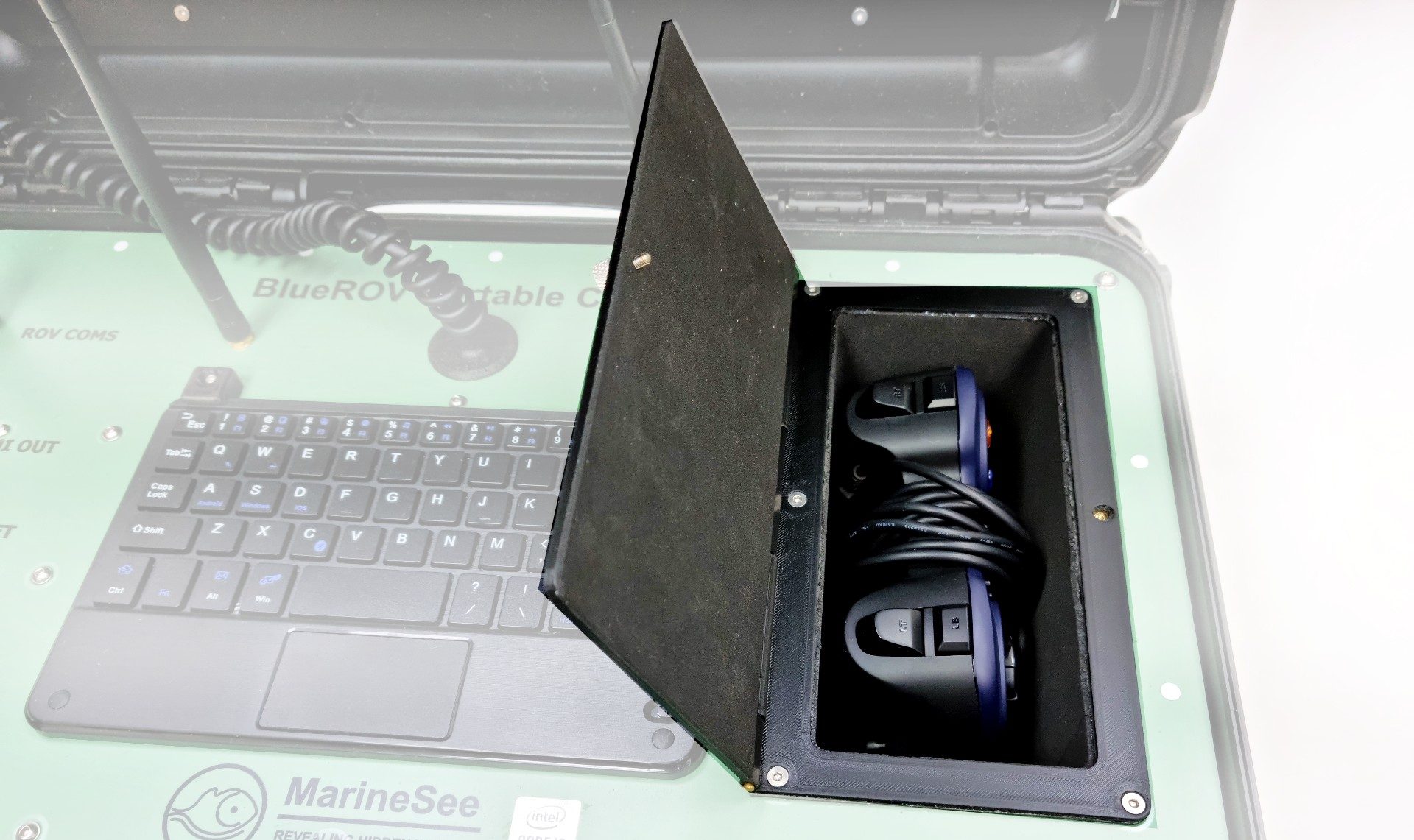

There is storage for a gamepad controller console similar to a Logitech 310
The Bluetooth keyboard / track pad is fixed to the front panel.
Dimensions

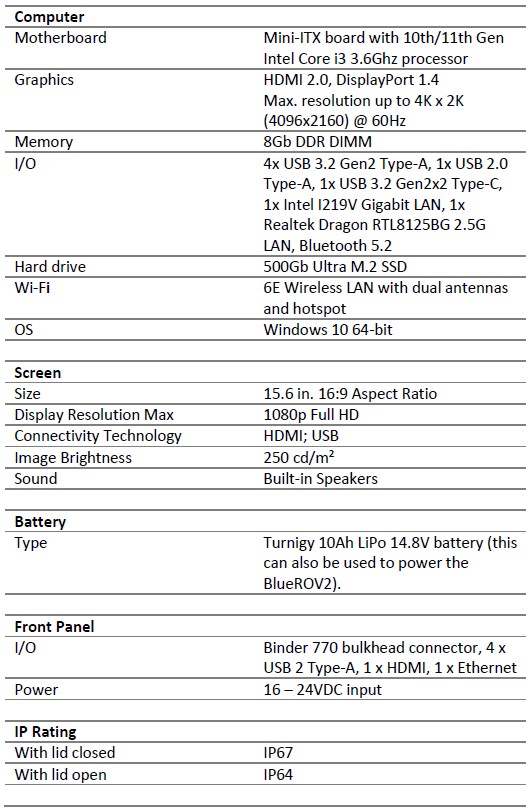

BlueROV Portable Console Specification
